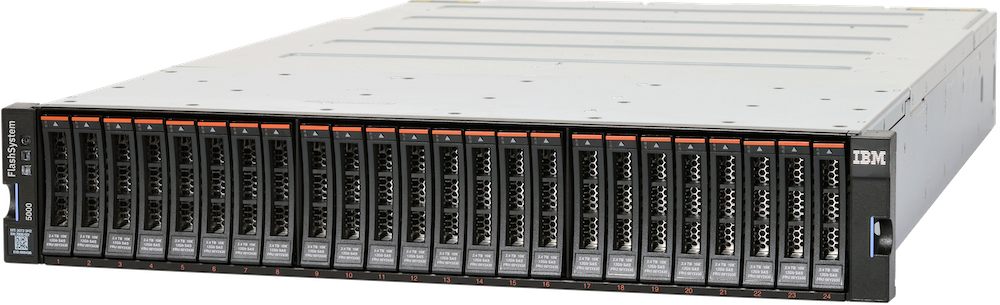

FS5035 Hybrid 50TB

£17,400.00

The FlashSystem 5035 is an entry enterprise Storage Array. This best-selling solution offers optimised performance for mixed workloads and virtualized environments. It is designed for demanding workloads at an affordable price. This offering provides 50TB of usable capacity.

Description

2 x 7.68TB SSD, 22 x 2.4TB SAS HDD
10GB iSCSI
64GB Cache
Fully redundant, hot-swappable fans and power supplies
16GB Fiber Channel or 25GB iSCSI
Flash Copy Standard
4 x 5m cables
Standard 19-inch Rack Support
EasyTier
Dual (Active/Active) Controller
Warranty Period: Three years standard warranty
Service Level: IBM Customer Replaceable Unit and On-Site Limited, 9x5 Next Business Day

Specification

Capacity
50TB
Cache
64GB
Drive Configuration
2 x 7.68TB SSD, 22 x 2.4TB SAS HDD
Host Connections
10GB iSCSI, 25GB iSCSI or 16GB Fiber Channel
Drives Supported
2.5-inch flash drives, SFF 2.5-inch disk drives, LFF 3.5-inch disk drives
Connectivity Supported
10Gb ISCSI, 16Gb Fiber Channel, 12Gb SAS, 25Gb ISCSI
Data Reduction Pools (Compression, DeDuplication, Thin Provisioning, UNMAP)
Hardware Assisted Compression
Encryption
Software Based
VMWare Integration
Remote Replication (Synchronous Metro Mirror, Asynchronous Global Mirror)
Hyperswap High Availability
NVMe Flash
FC-NVMe Host Connections
Easy Tier AI-driven automated tiering
Max IOPs
1.2M IOPs
RAID levels
Distributed RAID 1, 5 and 6
Min latency
Under 70μs
Max bandwidth
12GB/s
Storage Class Memory
Transparent Data Migration
Red Hat OpenShift Container Integration
Scale-out Clustering
Heterogenous Support for >500 storage systems
Metro Mirror (synchronous)
Global Mirror (asynchronous)
IBM Spectrum Virtualize Software
Snapshots
Maximum drives supported
Maximum of 504 drives per system and 1,008 drives in two-way clusters
Dual Controller
Rack Units
2U
Cache per control enclosure
32GB or 64GB
Cache per clustered system
64GB or 128GB
Cores per control enclosure
12
Cores per clustered system
24
Maximum standard expansion enclosure capacity
Up to 20 standard expansion enclosures per controller
Maximum high density expansion enclosure capacity
Up to 8 high-density expansion enclosures per controller
Redundant, hot-swappable fans
Redundant, hot-swappable power supplies
Standard 19-inch rack support
